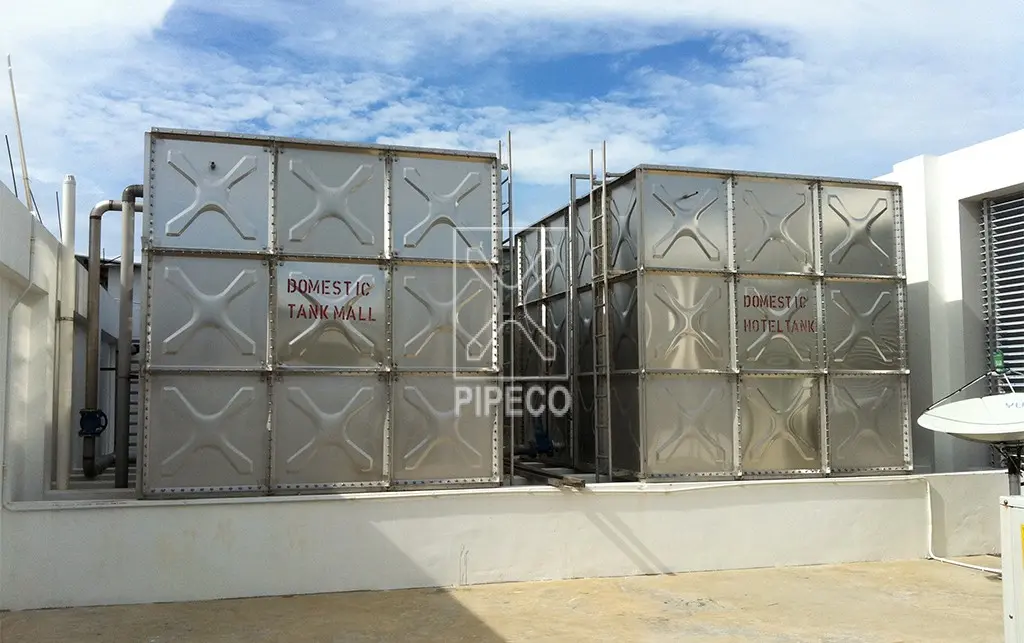

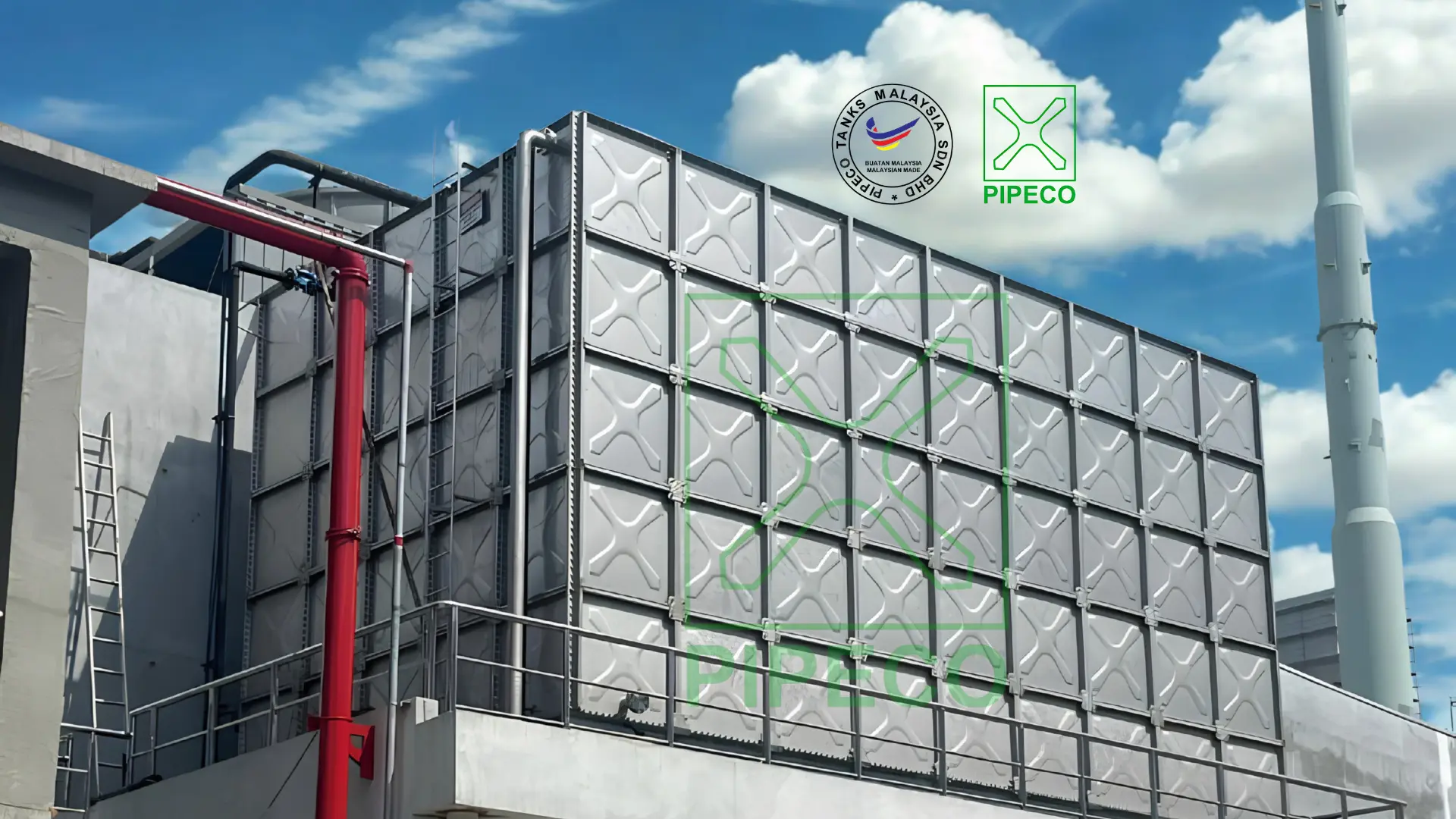

Pressed Stainless Steel Sectional Water Tank
Standard:
PIPECO pressed stainless steel sectional water tank constructed with hydraulically pressed flanged panels, conform to CNS 9443:2000 standard.
Materials:
The tank panel, tie rods, stays and cleats are made from Stainless Steel Grade 304 / 316.
Flanges of Plates:
Tank panels pressed with a 90° panel flange to the face of the plate on four sides.
Bolts, Nuts and Washers:
SS 304 / SS316 bolts, nuts and washers.
Sealing Materials:
Non-toxic PVC foam to be used for all jointing between tank panel flange.
Tank Cover:
Panel type tank cover supported by trusses.
600mm x 600mm square manhole supplied as standard for each compartment.
Water Level Indicator:
Standard: Reverse Reading Pointer Mechanical Type (Cat & Mouse).
Optional: Direct Reading Clear Tube Type.
Nozzles for Connection:
Short pipe with flange or socket for all pipe connections.
Ladder:
Internal ladder shall be made of SS 304 / SS316 and aluminium for external ladder, 300mm width.
Skid Base:
As per Pipeco design.
Standard Thickness for 1.22m x 1.22m Tank Panel
| Type | 1.22m (H) | 2.44m (H) | 3.66m (H) | 4.88m (H) |
|---|---|---|---|---|
| Tank covers | 1.5mm | 1.5mm | 1.5mm | 1.5mm |
| 4th side panels | 2.5mm | |||
| 3rd side panels | 2.5mm | 2.5mm | ||
| 2nd side panels | 2.5mm | 3.0mm | 3.0mm | |
| 1st side panels | 2.5mm | 2.5mm | 4.0mm | 4.0mm |
| Bottom panels | 2.5mm | 2.5mm | 4.0mm | 4.0mm |
Standard Thickness for 1.0m x 1.0m Tank Panel
| Type | 1.0m (H) | 1.5m (H) | 2.0m (H) | 2.5m (H) | 3.0m (H) | 3.5m (H) | 4.0m (H) |
|---|---|---|---|---|---|---|---|
| Tank covers | 1.5mm | 1.5mm | 1.5mm | 1.5mm | 1.5mm | 1.5mm | 1.5mm |
| 4th side panels | 2mm (1×1.5m) | 2mm (1x2m) | |||||
| 3rd side panels | 2mm (1m x 2m) | 2mm (1×1.5m) | 2mm (1x2m) | ||||
| 2nd side panels | 2mm (1×1.5m) | 2.5mm | 2.5mm | 2.5mm | 4.0mm | ||
| 1st side panels | 2.0mm | 2.5mm | 2.5mm | 3.0mm | 4.0mm | ||
| Bottom panels | 2.0mm | 2.5mm | 4.0mm | 2.5mm | 3.0mm | 4.0mm | 4.0mm |
Note: Specification may vary according to customer requirements.
