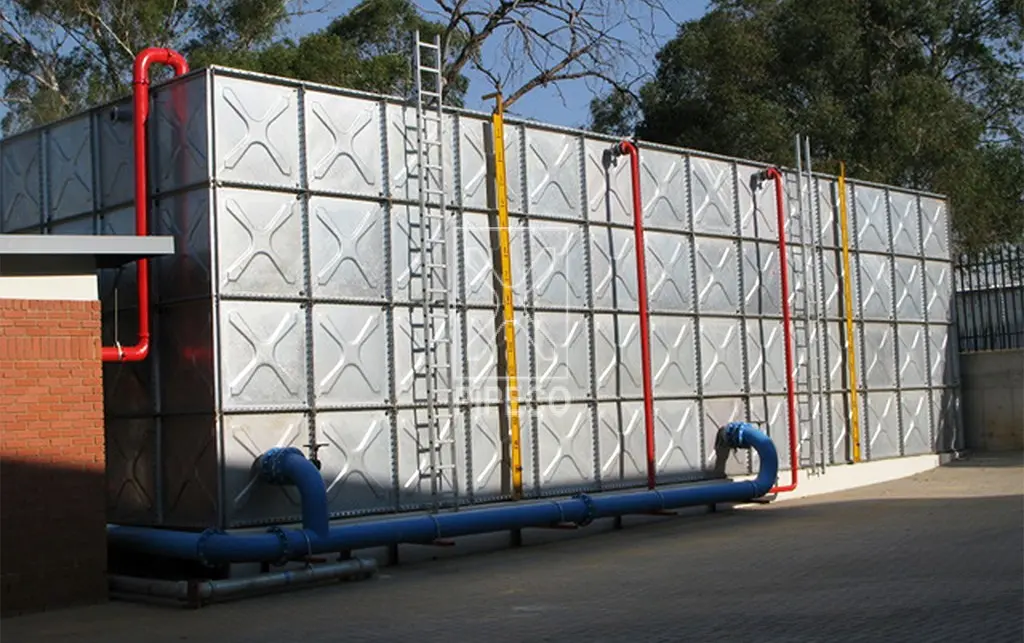

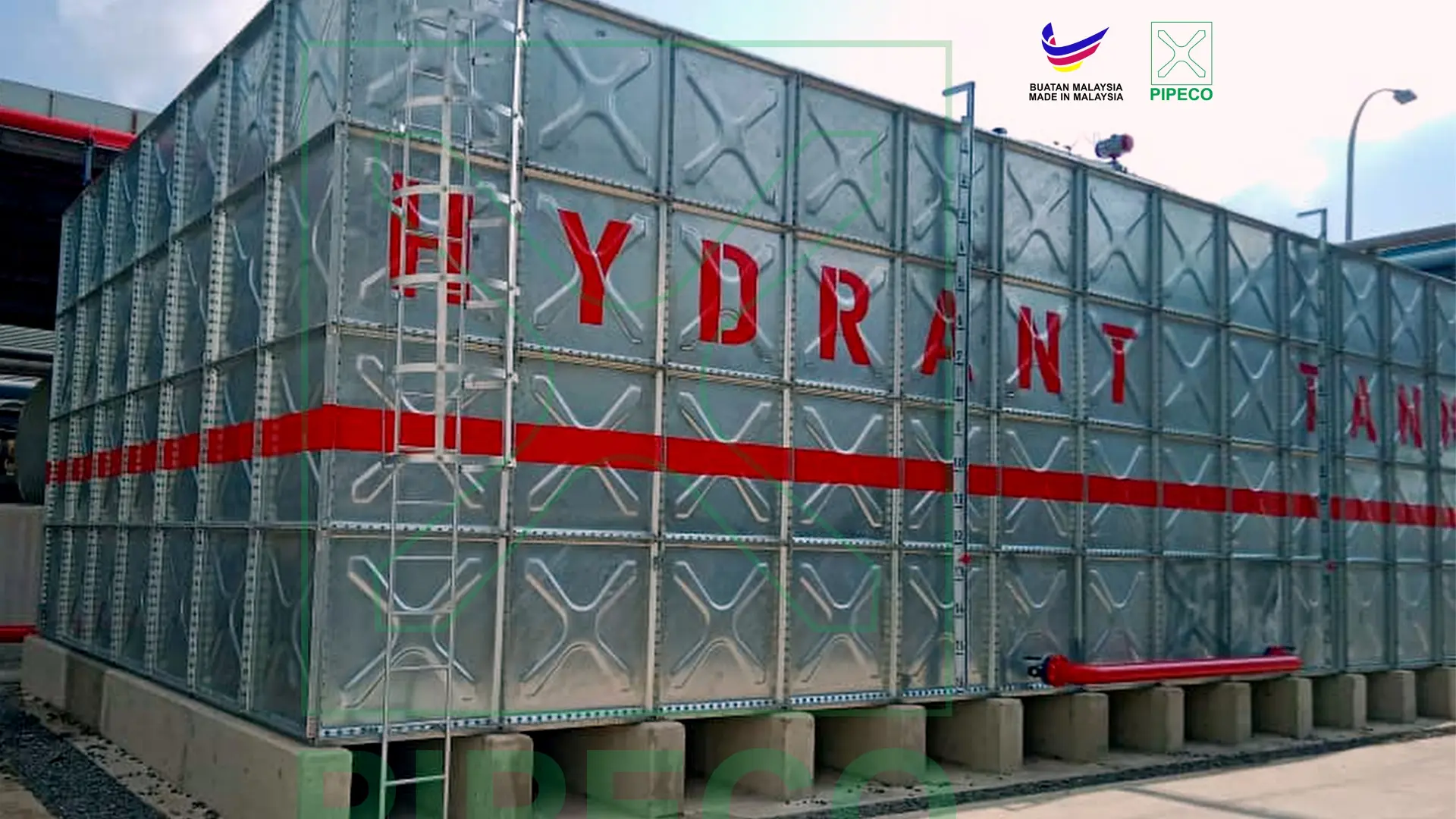

Pressed Steel Sectional Water Tank
Standard : PIPECO pressed steel sectional water tank constructed with hydraulically pressed flanged panels, conform to BS 1564 : 1975 and SS22 : 1979.
Materials : The steel used in the manufacture of the tank plates, stays and cleats conform to the requirements of ASTM A 1008 / 1001 Grade SS 50 or ISO equivalent.
Manufacturing Process : Cold hydraulic pressed with a combined double flange at an angle of 45 degree and 90 degree to the face of the plate on four sides.
Stays and Cleats : The stays and cleats are made of steel angle bar and stell plate.
Bolts, Nuts and Washers : Hot Dipped Galvanished steel bolts, nuts and washers for internal and external.
Jointing Materials : Non toxic PVC foam to be used for all jointing between tank panel flange.
Tank Cover : Panel type steel cover supported by trusses.
Access Manhole : 530mm x 530mm square manhole.
Water Level Indicator : Reverse Reading Pointer Mechanical Type (Cat & Mouse).
Ladder : Aluminium or HDG Steel ladder for internal and external access.
Finish : Hot Dip Galvanised conform to ISO 1461.
| SANS 10329 : 2020 | SS 22 : 1979/BS1564:1975 | |||||||
|---|---|---|---|---|---|---|---|---|
| Type | 1.22m (H) | 2.44m (H) | 3.66m (H) | 4.88m (H) | 1.22m (H) | 2.44m (H) | 3.66m (H) | 4.88m (H) |
| 4th side panels | 3.0mm | 5.0mm | ||||||
| 3rd side panels | 3.0mm | 3.0mm | 5.0mm | 5.0mm | ||||
| 2nd side panels | 3.0mm | 3.0mm | 4.5mm | 5.0mm | 5.0mm | 5.0mm | ||
| 1st side panels | 3.0mm | 3.0mm | 4.5mm | 5.0mm | 5.0mm | 5.0mm | 5.0mm | 6.0mm |
| Bottom panels | 3.0mm | 3.0mm | 4.5mm | 5.0mm | 5.0mm | 5.0mm | 5.0mm | 6.0mm |
| Type | 1.0m (H) | 2.0m (H) | 3.0m (H) | 4.0m (H) | 1.0m (H) | 2.0m (H) | 3.0m (H) | 4.0m (H) |
| 4th side panels | 3.0mm | 5.0mm | ||||||
| 3rd side panels | 3.0mm | 3.0mm | 5.0mm | 5.0mm | ||||
| 2nd side panels | 3.0mm | 3.0mm | 4.5mm | 5.0mm | 5.0mm | 5.0mm | ||
| 1st side panels | 3.0mm | 3.0mm | 4.5mm | 5.0mm | 5.0mm | 5.0mm | 5.0mm | 5.0mm |
| Bottom panels | 3.0mm | 3.0mm | 4.5mm | 5.0mm | 5.0mm | 5.0mm | 5.0mm | 5.0mm |
